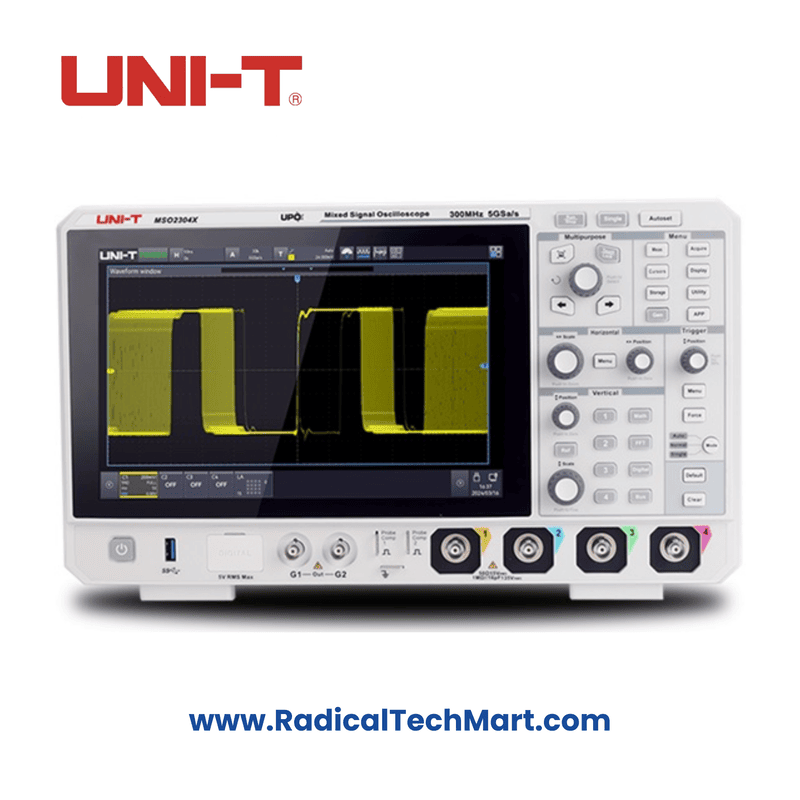

UNI-T MSO2304X Mixed Signal Oscilloscope

The MSO2000X series mixed-signal oscilloscope offers a comprehensive set of features, making it a versatile and powerful tool for advanced measurements and analysis. Key specifications and features include:

• Bandwidth: 300 MHz
• Analog Channels: 4
• Digital Channels: 16
• Real-Time Sample Rate: 5 GSa/s
• Maximum Memory Depth: 100 Mpts per channel
• Waveform Capture Rate: Up to 2,000,000 waveforms per second (wfms/s)
• Exclusive Technology: Ultra Phosphor 3.0 technology provides a 256-level brightness color temperature display for enhanced waveform visualization.
• Trigger System: Features an advanced digital trigger system with a trigger accuracy of 10 ps.
• Advanced Triggers: Supports 9 types of advanced triggers, 9 types of serial bus triggering, and decoding.
• Analysis Functions: Includes spectrum analysis, power analysis, histograms, waveform recording, enhanced resolution, pass/fail testing, and search/navigation.
• Measurement and Calculation: Equipped with extensive measurement and mathematical calculation functions for detailed analysis.
• Display: 10.1-inch capacitive touchscreen that supports various gestures for common waveform operations.
• Remote Control: Features a WebServer for remote control of the oscilloscope.

The warranty for this oscilloscope is provided as per the brand's policy.
